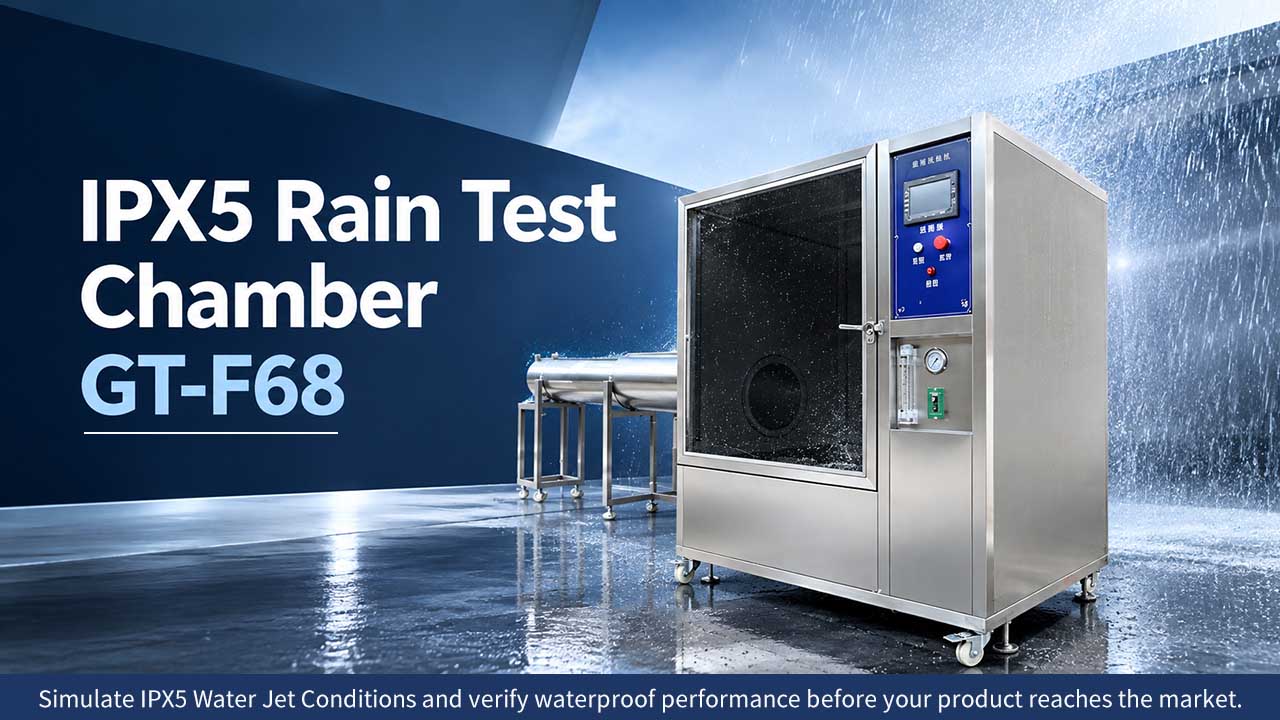

IPX5 Rain Test Chamber GT-F68

The mainly function of this IPX5 Rain Test Chamber is to test the performance of the product when it is stored, transported and used in a rainy climate environment. This machine can simulate the water leakage in various environment. It is applicable to test the physical function of electronic products, automobile parts, lamps, electrical cabinets, electrical components, automobiles and motorcycles subjected to the droplets and rain or spray. After the testing, to determine if the performance of product can meet the requirement, so that to better help for product design, improvement, verification and Ex-factory inspection.

Features of IPX5 Rain Test Chamber

A water tank is arranged at the bottom, the water is pumped and pressurized through the stainless steel pump inside the right control box, then sent to the spray pipe device’s nozzle, the nozzle is horizontally sprayed to the sample on the turntable, water spray scattered to the inside of the water tank, so as to form a water circulation system.

Standards

GB 4208, GB/T 2423.38, IPX5

Key Specification of Rain Spray Chamber

Rain Test  Chamber Structure

1. Electrical controller: LCD touch key controllers

2. Testing Time

1～9999min (Adjustable)

3.Turntable Controller

Speed reduction motor, smooth speed regulation.

4.Pressure Gage

Dial manometer, displays the flow rate for each single row test class.

5.Flow pressure control

Flow and pressure are controlled by manual valves. digital flow meters indicate the flow rate, spring type and stainless steel watch case pressure gauge indicating pressure.

6.Preset test time

0S～99H59M59S (can be freely adjusted)

7.Environment temperature

RT 10～35℃( average temperature within 24H ≤28℃）

Safety Protection Device of Industrial Rain Test Chamber

Leakage Protection

Short circuit Protection

Water shortage Protection

Motor overheating protection

Arm Reminding
